Descriptions-LED anti-explosion light-XT01- Click here-Email & Inquire
Watts | 40W, 60W, 80W, 120W |
Voltage | 85V~277V, 380V, etc. |
Driver | Meanwell/MOSO/DNA |
Chip | Cree/Philips/Epistar |
Housing | DNA aluminum |
Lm/W | 110~180 |
Hz | 50/60 |
CRI | ＞80 |
Start time | < 0.5s |
Power factor | ≧0.98 |
IP | 67 |
Color temperature | 2700~6500K, RGB |
Beam angle | 120°, 150°, 220° |
Dimming/Motion sensor | Available |
Dust | II 2 D Ex tb IIIC T80°C Db |
Ex-mark for Gas | II 2 G Ex eb mb IIC T5 T6 Gb |
IK | 10 |
Surge protection | 10KV |
Life(Hours) | 50000/100000 |
Warranty | 3/6 years |
Code/Watts | Size(mm) | For more information, please click the below link to email us （The link is our email address)
|
XT01-40W | Φ150*280 |
pgsha@188.com
|
XT01-60W | Φ150*280 |
XT01-80W | Φ190*300 |
XT01-120W | Φ190*300 |
Applications

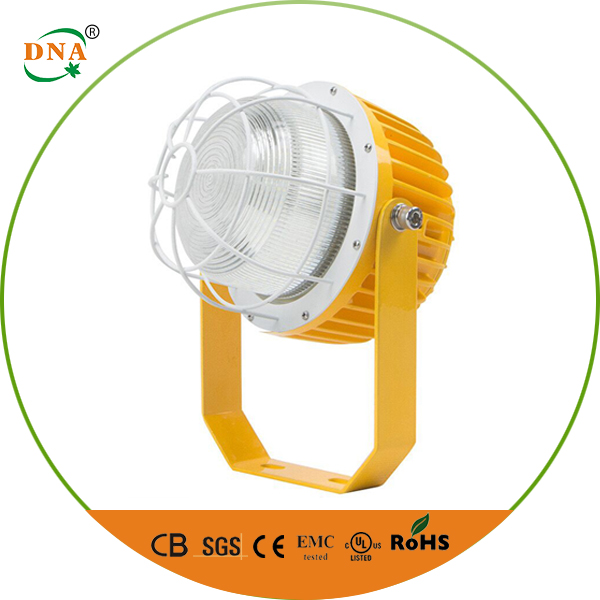

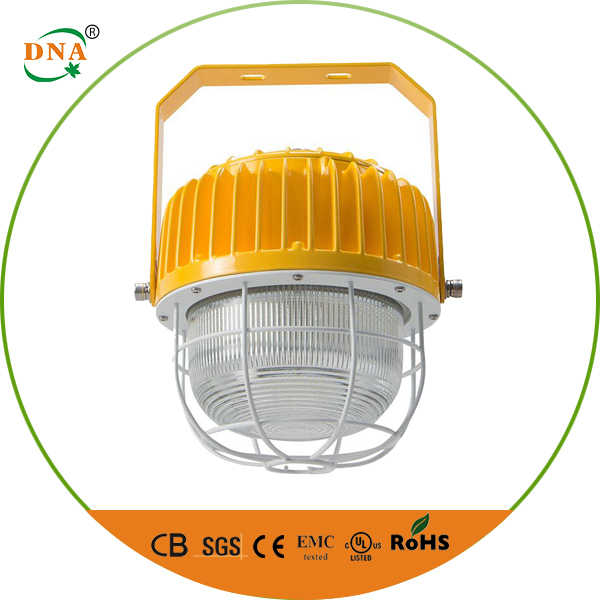

LED explosion-proof light/LED anti-explosion light - XT01
Suitable for accent and general lighting (such as factory, gas station, chemical plant, mining place, ship)
Benefits
1. High quality die casting aluminum housing, strong and works from -45 ℃ to +50 ℃
2. Tough tempered glass lens, transmits more light and protects the lamp well
3. Optional chips, decided by clients' requirement
4. Various of drivers available, chosen by clients' needs
